A similar product were first introduced into the Australian mining and tunneling industry in 1997. This V-Bar™ Resin Bolt is a specifically designed solid steel reinforcing bar for the use in strata support in underground mining and tunneling excavations.

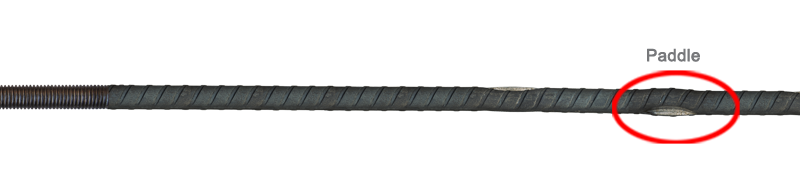

The V-Bar™ Resin Bolt includes a paddle system to improve resin mixing and consequently provide a higher bond strength in larger diameter holes.
Bar Size
Typical Hole Diameter
Thread Size
Nominal Paddle Diameter
Split-End /Tail-End
Y16
26mm to 28mm
DIN 405 18mm LH
20mm to 22mm
Nominal Hole Size Less 6mm
Y18
28mm to 34mm
DIN 405 20mm LH
22mm to 24mm
Nominal Hole Size Less 6mm
Y20
30mm to 36mm
DIN 405 22mm LH
24mm to 26mm
Nominal Hole Size Less 6mm
Y25
35mm to 40mm
M24 LH
29mm to 31mm
Nominal Hole Size Less 6mm
*Overall Length – To customer requirements
Note: the product may be supplied with a 45° point to ensure ease of installation.
All V-Bar™ Resin Bolts can be supplied in Coupling Bolt configuration.
